Single Spacer or Cover Block

Certified Company ISO 9001-2008

Single spacer or cover block is the most basic form of the spacers in use.
It offers solid support when reinforcement is horizontally placed.
It is mostly suitable when cover and reinforcement of same size is used for construction.
It is widely used for structural members like slabs and beams.
It has different sizes which are based on size of steel and cover required.

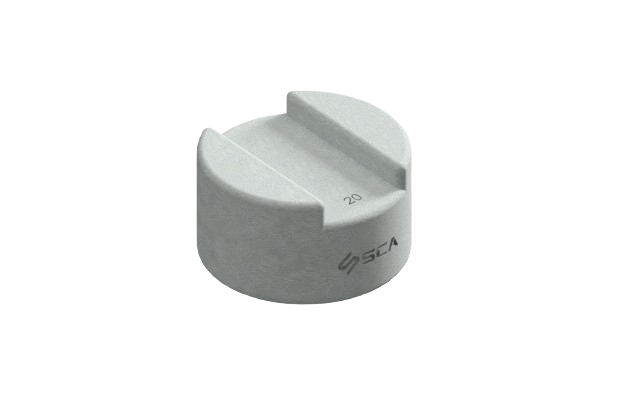

- SC20 used for 20 mm cover for slab
- SA20 used for 20 mm cover for slab

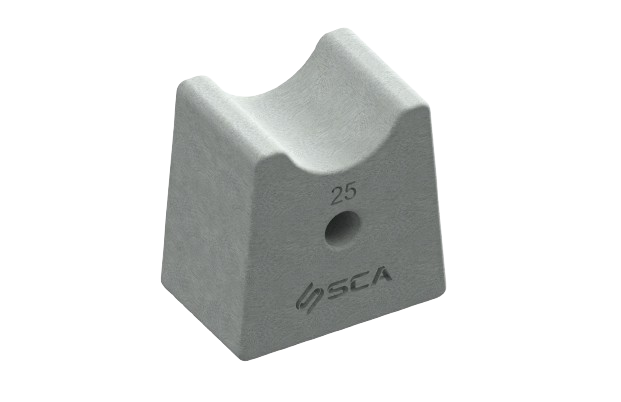

- SA25 used for 25 mm cover for slab and beams

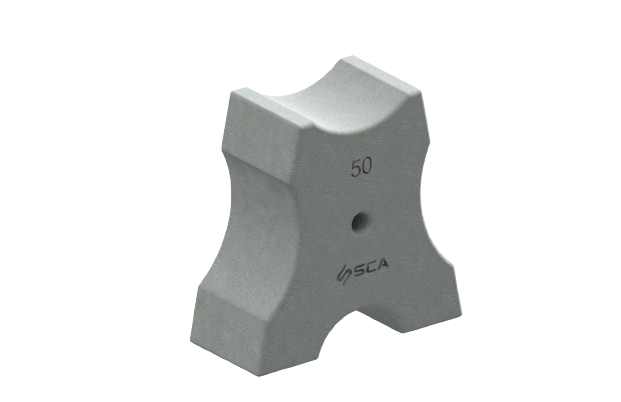

- SC50 used for 50 mm cover for footings

CODE	COVER SIZE	MAX. PERMISSIBLE REBAR DIA	QUANTITY PACKING BAG
SCSG15	15MM	18MM	750 PIECS
SCSG20	20MM	16MM	1000 PIECS
SCS25	25MM	18MM	1000 PIECS

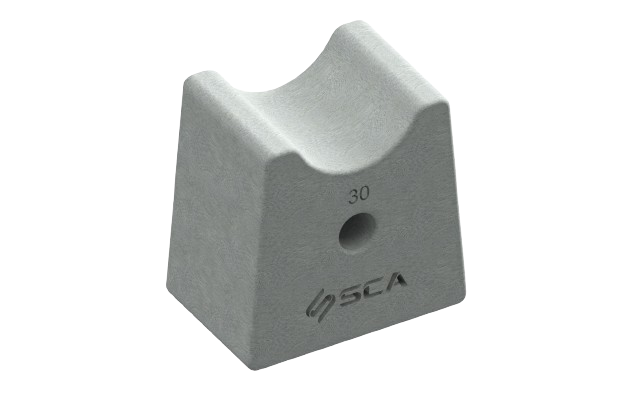

SCS30	30MM	32MM	250 PIECS
SCS50	50MM	32MM	250 PIECS

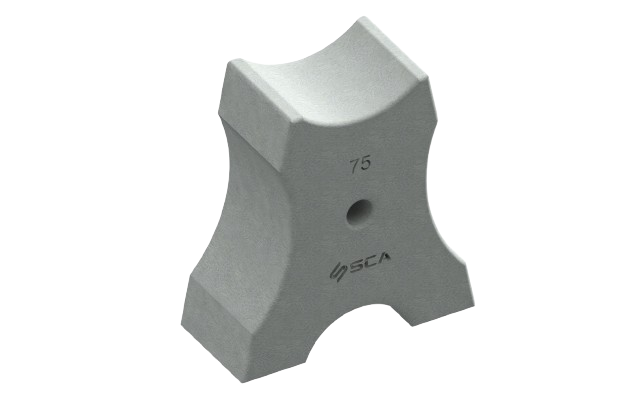

SCS75	75MM	32MM	250 PIECS

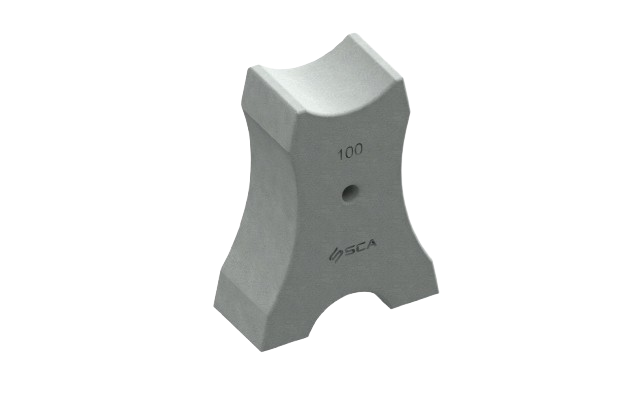

SCS100	100MM	32MM	250 PIECS
